Gigabyte BRIX GB-BMPD-6005 | N6005 4C 4T | UHD Graphics 605
Référence: PCB_GBT_BMPD_6005
Hors Stock

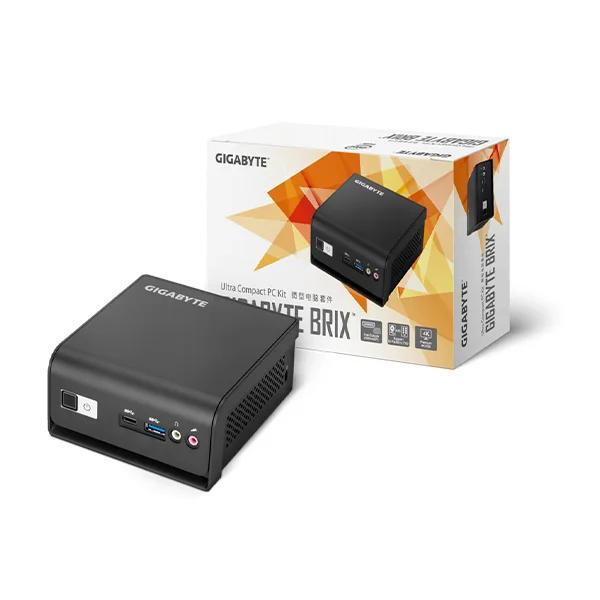

Mini Pc GIGABYTE BRIX GB-BMPD-6005 - Pentium Silver N6005 2.0GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, x M.2-2280 Slot, 1 x 2.5 Inch SATA III Bay, Wireless AC & Bluetooth 4.2 - MEGA PC
809 DT
Mini Pc GIGABYTE BRIX GB-BMPD-6005
Pentium Silver N6005 2.0GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, x M.2-2280 Slot, 1 x 2.5 Inch SATA III Bay, Wireless AC & Bluetooth 4.2
| Dimensions | 46.8x112.6x119.4mm |
| Motherboard Size | 105 x 110 mm |
| CPU | Intel® Pentium® Processor N6005 2.8GHz, 4 core (TDP 10W) |
| Memory | 1 x SO-DIMM DDR4 slots 2933MHz Max. 16GB |
| LAN | Gigabit LAN (Realtek 8111HS) |
| Wifi Card | Dual Band Wireless-802.11 AC |
| Graphics | Intel® UHD Graphics 605 |
| Audio | Realtek ALC255 |
| HDMI Resolution (Max.) | HDMI2.0a 4096 x 2160 @ 60 Hz |
| Mini DP Resolution (Max.) | DP1.2a 4096 x 2160 @ 60Hz |
| Storage | Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) |
| Expansion Slots | 1 x M.2 slot (2280_storage) PCIe X2/SATA 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
| Front I/O | 1 x USB3.0 1 x USB3.0 type C 1 x headphone jack with MIC |
| Rear I/O | 1 x HDMI(2.0a) 1 x mini DisplayPort (1.2a) 2 x USB 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot |
| Power Supply | Input: AC 100-240V Output: DC 19V 2.1A |
| VESA | Bracket included Supports 75 x 75 and 100 x 100 mm |
| Support OS | Win10 64bit |
| Environment | System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C |
